미션베이직 셋팅후 P1815 , P1820 고장코드 검출
어제는 'P0868 변속기 오일 압력 낮음' 고장코드가 검출되고 나서 VCDS - P0868 변속기 오일 압력 낮음 시동걸고 주차상태에서 PRDN 기어변속을하니 충격음이 발생하는것 같기도 하고... ㅠㅠ P0868 : 네
playweb.tistory.com
P1815 - Pressure Control Valve 1 (N215): Short to Plus
P1820 - Pressure Control Valve 2 (N216): Short to Plus
▼VCDS 고장코드 진단내용 ▼
Friday,10,November,2023,20:47:13:40950
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x86
VCDS Version: 23.3.1.0
Data version: 20230421 DS346.2
http://www.Ross-Tech.com
VIN: WVWZZZ16ZCM069636 License Plate: 2023-11-10
Mileage: 240760km-149601mi Repair Order:
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
Chassis Type: 16-VW32 (7N0)
Scan: 01 02 03 05 08 09 10 15 16 17 19 25 2B 2E 42 44 46 4F 52 56
62 72
VIN: WVWZZZ16ZCM069636 Mileage: 240760km-149601miles
01-Engine -- Status: OK 0000
02-Auto Trans -- Status: Malfunction 0010
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
05-Acc/Start Auth. -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
2B-Steer. Col. Lock -- Status: OK 0000
2E-Media Player 3 -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
4F-Centr. Electr. II -- Status: OK 0000
52-Door Elect, Pass. -- Status: Malfunction 0010
56-Radio -- Status: OK 0000
62-Door, Rear Left -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CFFB) Labels:. 03L-906-018-CFF.clb
Part No SW: 03L 906 018 AT HW: 03L 907 309 R
Component: R4 2,0L EDC H25 7266
Revision: 42H25--- Serial number: 00000000000000 CVN: 49049D1E
Coding: 001D0012040400080000
Shop #: WSC 00066 000 00190
ASAM Dataset: EV_ECM20TDI01103L906018AT 003010
ROD: EV_ECM20TDI01103L906018AT_003_VW36.rod
VCID: 7CD92021F774917397-8028
VINID: 9E69EAAAA046A937401891831840A75E33
No fault code found.
Readiness: 0 0 0 0 0
-------------------------------------------------------------------------------
Address 02: Auto Trans Labels: 02E-927-770.clb
Part No SW: 02E 300 057 A HW: 02E 927 770 AL
Component: GSG DSG AG6 511 2706
Revision: 05351113 Serial number: 00001107222216
Coding: 0000020
Shop #: WSC 00066 000 00000
VCID: 17131F8D2612522B1A-8042
2 Faults Found:
18223 - Pressure Control Valve 1
P1815 - 008 - Short to Plus - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 0
Fault Frequency: 255
Reset counter: 40
Mileage: 240767 km
Time Indication: 0
Date: 2018.04.02
Time: 08:31:09
18228 - Pressure Control Valve 2
P1820 - 008 - Short to Plus - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 0
Fault Frequency: 255
Reset counter: 40
Mileage: 240767 km
Time Indication: 0
Date: 2018.04.02
Time: 08:32:13
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels:. 1K0-907-379-60EC1F.clb
Part No SW: 1K0 907 379 BJ HW: 1K0 907 379 BJ
Component: ESP MK60EC1 H31 0121
Revision: 00H31001
Coding: A43B40F809280003251102E7901F0042250000
Shop #: WSC 00066 000 00000
VCID: 7BDB233DFA7A964B9E-802E
No fault code found.
-------------------------------------------------------------------------------
Address 05: Acc/Start Auth. (J518) Labels:| 5K0-959-434.clb
Part No SW: 5K0 959 434 A HW: 5K0 959 434 A
Component: VWKESSYPQ35GP 085 0802
Revision: 00085000 Serial number: 0153275823 Dataset Number: 5K0116v____ 1608
Coding: 030C0C
Shop #: WSC 00066 000 00000
ASAM Dataset: EV_KESSY_PQ35GP A01018
ROD: EV_KESSY_PQ35GP.rod
VCID: 334BCB1D9AAA9E0B06-8066
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels:| 5K0-907-044.clb
Part No SW: 5K0 907 044 ES HW: 5K0 907 044 ES
Component: Climatronic H18 1112
Revision: 00001003
Coding: 0000004002
Shop #: WSC 00066 000 00119
ASAM Dataset: EV_Climatronic A01010
ROD: EV_ClimaAutoBasis_VW32.rod
VCID: 002154D19B9CF593CB-8054
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 1K0-937-08x-09.clb
Part No SW: 1K0 937 087 AA HW: 1K0 937 087 AA
Component: BCM PQ35 H+ 111 0651
Revision: 00111 AC
Coding: 41000A3BF82D0AC040080080340001E40771008855A085F05C800000A040
Shop #: WSC 10233 875 11572
VCID: 70C10411A33CE5133B-8024
Subsystem 1 - Part No: 1K0 955 559 AH Labels: 1K0-955-559-AG.CLB
Component: RLS 030911 05 54 0403
Coding: 06300A
No fault code found.
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 1Q0-919-475.clb
Part No SW: 5C6 919 475 HW: 7E0 919 475 A
Component: PARKHILFE 8K H10 0005
Revision: -------- Serial number: 84091130200034
Coding: 108101
Shop #: WSC 00066 000 00190
ASAM Dataset: EV_EPHVA18VW3610000 001003
ROD: EV_EPHVA18VW3610000.rod
VCID: 71C70115A036EC1B34-8024
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 5C0 959 655 C HW: 5C0 959 655 C
Component: AirbagVW10 013 0613
Serial number: 003G6M017K1X Dataset Number: 160003v____ 0131
Coding: 00003242
Shop #: WSC 00066 000 00000
ASAM Dataset: EV_AirbaVW10SMEVW360 A01014
ROD: EV_AirbaVW10SMEVW360.rod
VCID: 3245CE1965B097030D-8066
Crash sensor for side airbag: driver side:
Subsystem 1 - Part No SW: 5K0 959 354 HW: 5K0 959 354
Component: S.Sens.Fahr.V H01 ----
Serial number: 3572MSME11066662ZZZL
Front Passenger's Side Airbag Crash Sensor:
Subsystem 2 - Part No SW: 5K0 959 354 HW: 5K0 959 354
Component: S.Sens.Beif.V H01 ----
Serial number: 3582MSME13446062ZZZK
Rear Side Airbag Crash Sensor (on driver's side):
Subsystem 3 - Part No SW: 5K0 959 351 A HW: 5K0 959 351 A
Component: S.Sens.Fahr.H H02 ----
Serial number: 3516KSME40016414ZZZ9
Passenger side rear thorax airbag crash sensor:
Subsystem 4 - Part No SW: 5K0 959 351 A HW: 5K0 959 351 A
Component: S.Sens.Beif.H H02 ----
Serial number: 3526KSME4F133614ZZZR
No fault code found.
-------------------------------------------------------------------------------
Address 16: Steering wheel (J527) Labels:| 5K0-953-569.clb
Part No SW: 1K5 953 521 BE HW: 5K0 953 569 E
Component: LENKS.MODUL 014 0140
Revision: FF010040 Serial number: 20110526201378
Coding: 4000040000
Shop #: WSC 00066 000 00190
ASAM Dataset: EV_SMLSNGVOLWSXS A01004
ROD: EV_SMLSNGVOLWS.rod
VCID: 71C70115A036EC1B34-8024
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 5C6 920 871 A HW: 5C6 920 871 A
Component: KOMBI H04 0617
Serial number: 00000000000000
Coding: 571E01
Shop #: WSC 00066 123 00190
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04114
ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod
VCID: 2A75D6794D60DFC3B5-807E
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7N0-907-530-V2.clb
Part No SW: 7N0 907 530 K HW: 1K0 907 951
Component: J533 Gateway H40 1620
Revision: H40 Serial number: 20101101290178
Coding: 351002
Shop #: WSC 00066 123 12345
VCID: 3851FC318BCC7D5333-806C
1 Fault Found:
01305 - Databus for Infotainment
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 1
Fault Frequency: 1
Reset counter: 18
Mileage: 240713 km
Time Indication: 0
Date: 2018.04.02
Time: 00:31:53
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H04 0617
Serial number:
Coding: 000007
Shop #: WSC 00066 000 00119
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03009
ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
VCID: 6AF516798DE01FC375-803E
No fault code found.
-------------------------------------------------------------------------------
Address 2B: Steer. Col. Lock (J764) Labels:* 5K0-905-861.clb
Part No SW: 5K0 905 861 A HW: 5K0 905 861 A
Component: ELV-PQ35 H20 0230
Revision: 00000000 Serial number: 11000181144002
Coding: 4900000000000000
Shop #: WSC 00066 790 50316
ASAM Dataset: EV_ELVMarquMPVW36X A01001
ROD: EV_ELVMarquMPVW36X.rod
VCID: 2E7DDA697188B3E369-807A
No fault code found.
-------------------------------------------------------------------------------
Address 2E: Media Player 3
Cannot be reached
-------------------------------------------------------------------------------
Address 42: Door Elect, Driver (J386) Labels:| 3C0-959-70X-GEN4.clb
Part No SW: 561 959 701 A HW: 3C0 959 793 C
Component: TUER-SG FT 002 0515
Revision: 12110009 Serial number: 0003574525
Coding: 0010F7
Shop #: WSC 01383 790 50316
ASAM Dataset: EV_TSGFPQ35BRFVW46X A04001
ROD: EV_TSGFPQ35BRFVW46X_VW32.rod
VCID: 1C1900A11734317337-8048
Slave Driver:
Subsystem 1 - Part No SW: 3C0 959 703 B HW: 3C0 959 795 C Labels: 1K0-959-70X-GEN4.CLB
Component: J388__TSG-HL 007 1508
Serial number: 00000006126277
Coding: 0000D0
No fault code found.
-------------------------------------------------------------------------------
Address 44: Steering Assist Labels: 1K0-909-14x-GEN3.clb
Part No: 1K0 909 144 M
Component: EPS_ZFLS Kl. 70 3201
Revision: 00H20000
Shop #: WSC 02069 000 90108
VCID: 3449C80157A499331F-8060
No fault code found.
-------------------------------------------------------------------------------
Address 4F: Centr. Electr. II (J520) Labels:. 1K0-907-532.clb
Part No SW: 7N0 907 532 HW: 1K0 907 951
Component: EZE_2 H40 1620
Revision: H40 Serial number: 20101101290178
Coding: 01030100
Shop #: WSC 00066 123 12345
VCID: 6FC3076DBE02FAEB22-803A
Subsystem 1 - Part No SW: 5K0 959 591 HW: 5K0 959 591
Component: J245 PS41.022 H09 0007
Serial number: WRH00038H0+
Coding: 180000
No fault code found.
-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. (J387) Labels:| 3C0-959-70X-GEN4.clb
Part No SW: 561 959 702 A HW: 3C0 959 792 C
Component: TUER-SG BT 002 0515
Revision: 14110009 Serial number: 0003546423
Coding: 0011F6
Shop #: WSC 10233 875 115726
ASAM Dataset: EV_TSGBPQ35BRFVW46X A04001
ROD: EV_TSGBPQ35BRFVW46X_VW32.rod
VCID: 1D1F0DA50C2E387BC0-8048
Slave Passenger:
Subsystem 1 - Part No SW: 3C0 959 704 B HW: 3C0 959 794 C Labels: 1K0-959-70X-GEN4.CLB
Component: J389__TSG-HR 007 1508
Serial number: 00000006133472
Coding: 0000D0
1 Fault Found:
67584 - Warning Light for Front Door
B11F5 01 [008] - Electrical Failure
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Reset counter: 60
Mileage: 240767 km
Date: 2023.11.10
Time: 08:30:59
-------------------------------------------------------------------------------
Address 56: Radio
Cannot be reached
End-------------------------(Elapsed Time: 02:36)--------------------------
어제 차를 주차후 24시간 동안 움직이지 않았습니다
오늘 어제 고장코드를 삭제해 주었습니다
고장 코드는 깔끔하게 삭제되었습니다
주자창에서 나와서 약 10Km 거리를 달려보았습니다
경고등이 없습니다
어제는 전진/후진이 힘겹게 간혈적으로 안되던게
여러번 변속이 안되서 포기하고 주차해두었거든요
그런데 오늘 주행해보니 전혀 이상이 없었습니다
미션오일만 교체해주면 될것 같다 판단했는데....
시동걸때 간혈적으로 밧데리 경고등 1개만 표출되는게 이상합니다
그리고 VCDS 진단기로 다시 진단해보니
P1815 - Pressure Control Valve 1 (N215): Short to Plus
P1820 - Pressure Control Valve 2 (N216): Short to Plus
이게 문제 있다고 알려줍니다
각 벨브가 전진과 후진을 담당하는 기능을 하는것 같은데
솔레노이드 벨브작동할때 더러워진 미션오일에 이물질이 걸려그런건지
아니면 벨브에 접지부위가 부식이된건지 모를일이네요
원인이 DSG 미션베이직 셋팅을 진행한것과 미션오일이 부족한것(부족하지 않습니다)과 관련이 없는것 같습니다
밸브바디 솔레노이드밸브(미션오일펜 가스켓) 교환방법 automatic transmission pan gasket filter
DSG 오일 펌프 밸브바디 탈착을 위해 미션오일팬 분해, 리어커버 분해 폭스바겐 제타 미션고장 증상 감속 및 제동시 변속충격(VCS 진단기 고장코드 없음) 솔레노이드고장 또는 밸브듀얼클러치고
playweb.tistory.com

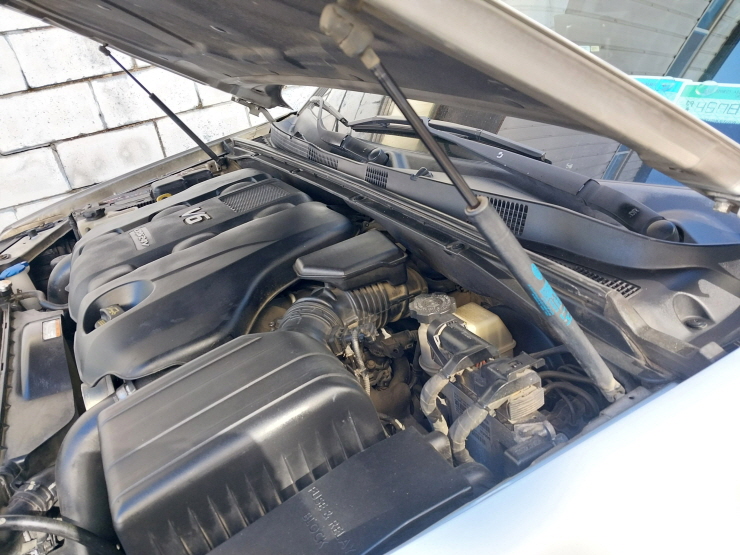

모하비 엔진룸을 청소를 했습니다
본넷열고
먼지가 한가득
억! 스바~!!
손 잘린줄
뼈가 부러진건가...?
아픈 상태로 이형제로 뿌려주고 에어건으로 불고 걸래로 닦고
이제 좀 깔끔합니다
인젝터가 배터리쪽에 위치에 있네요

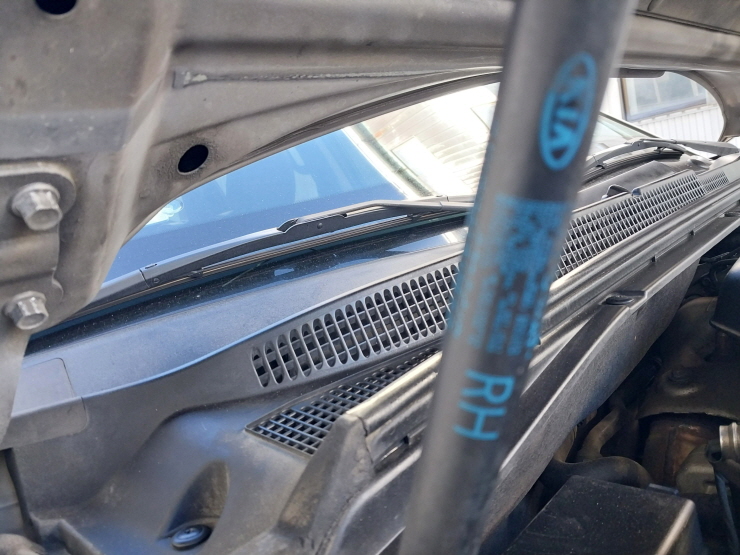

아... 본넷 쇼바..
